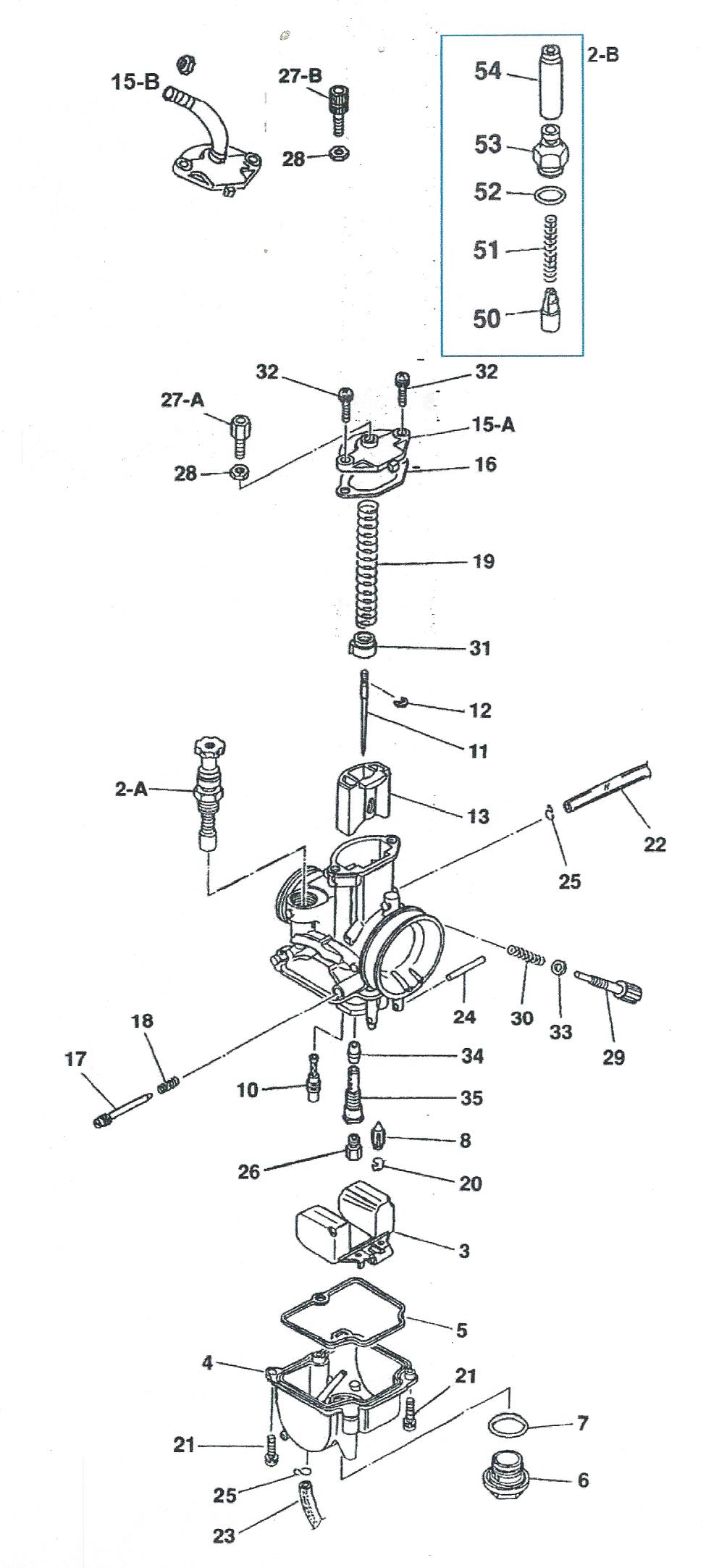

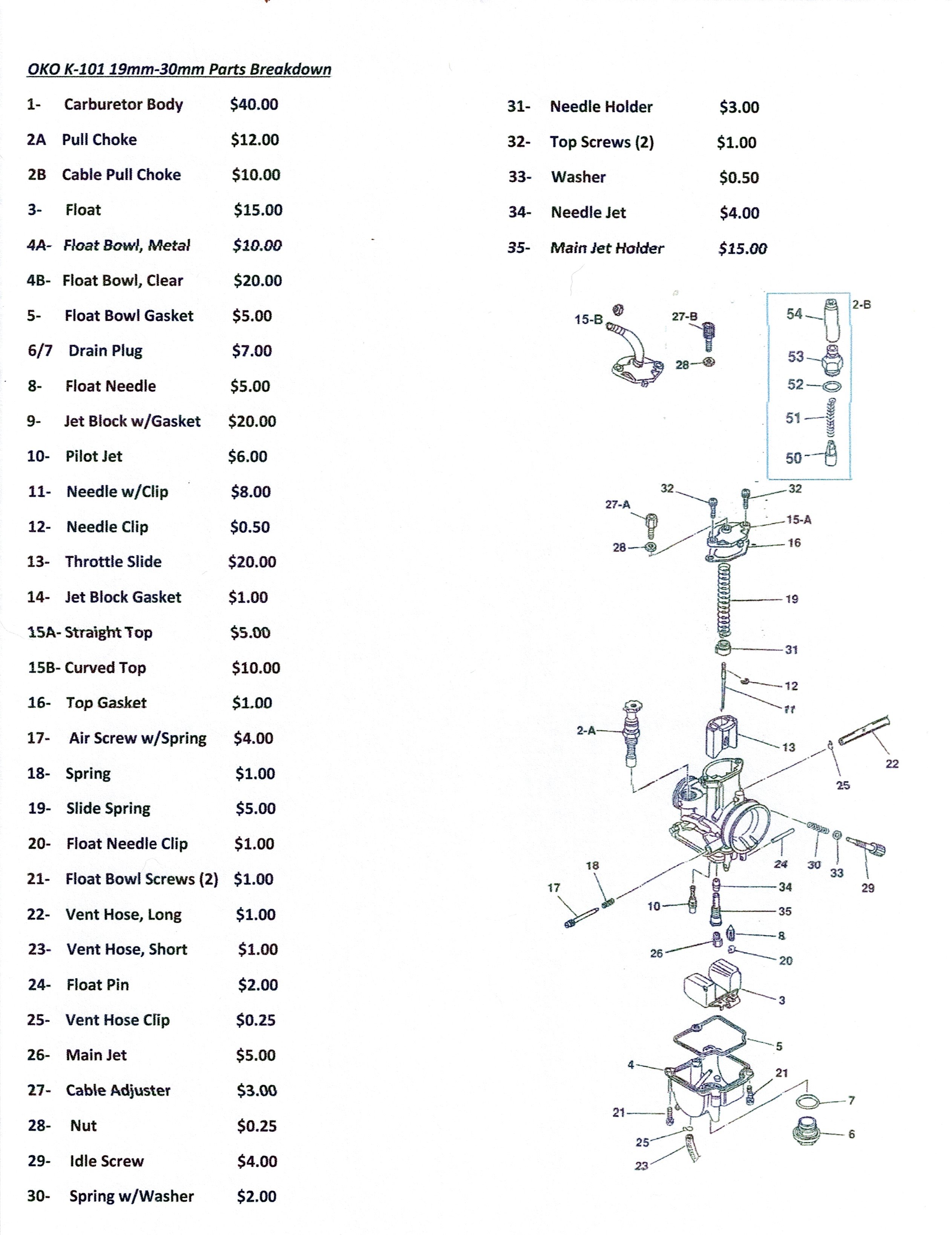

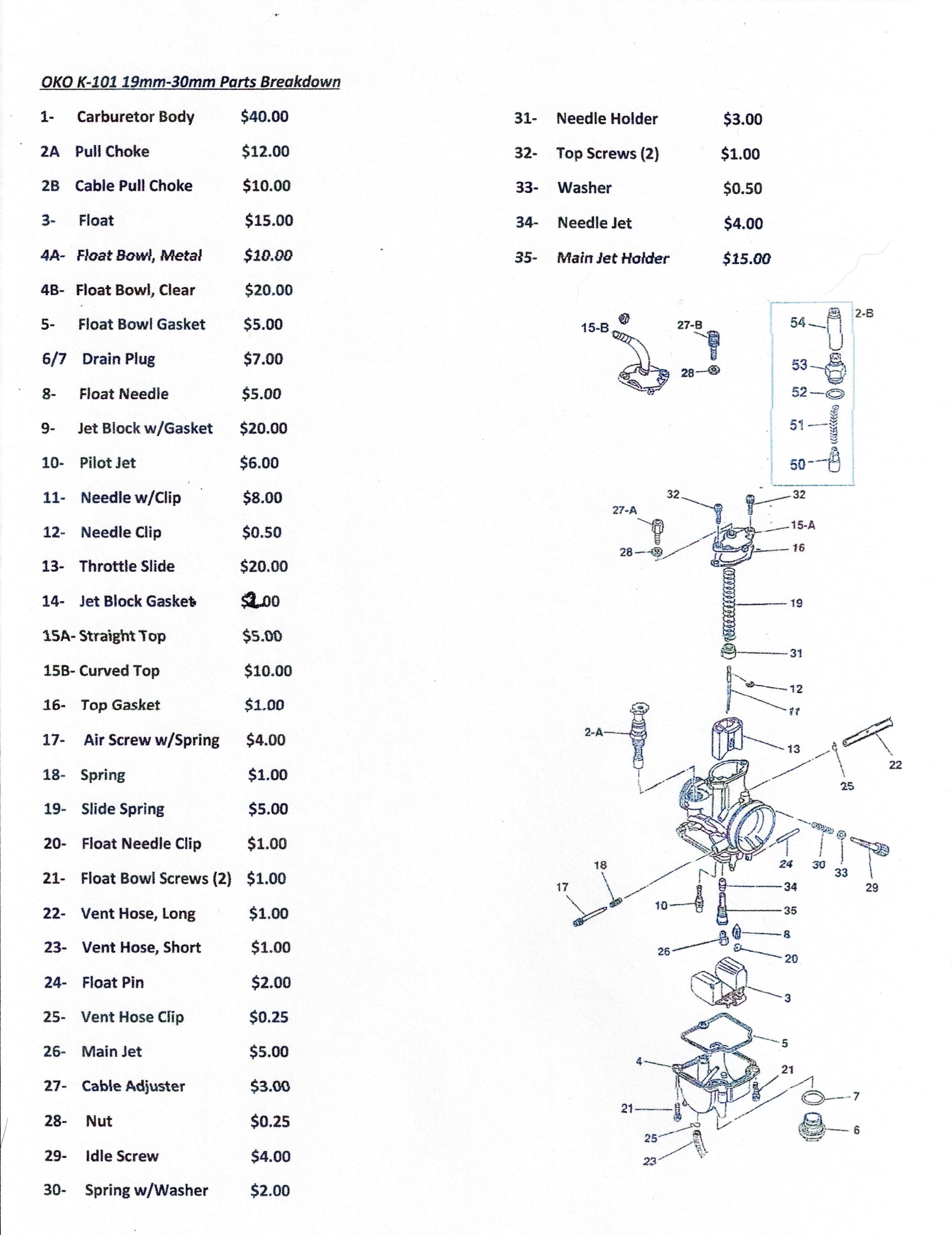

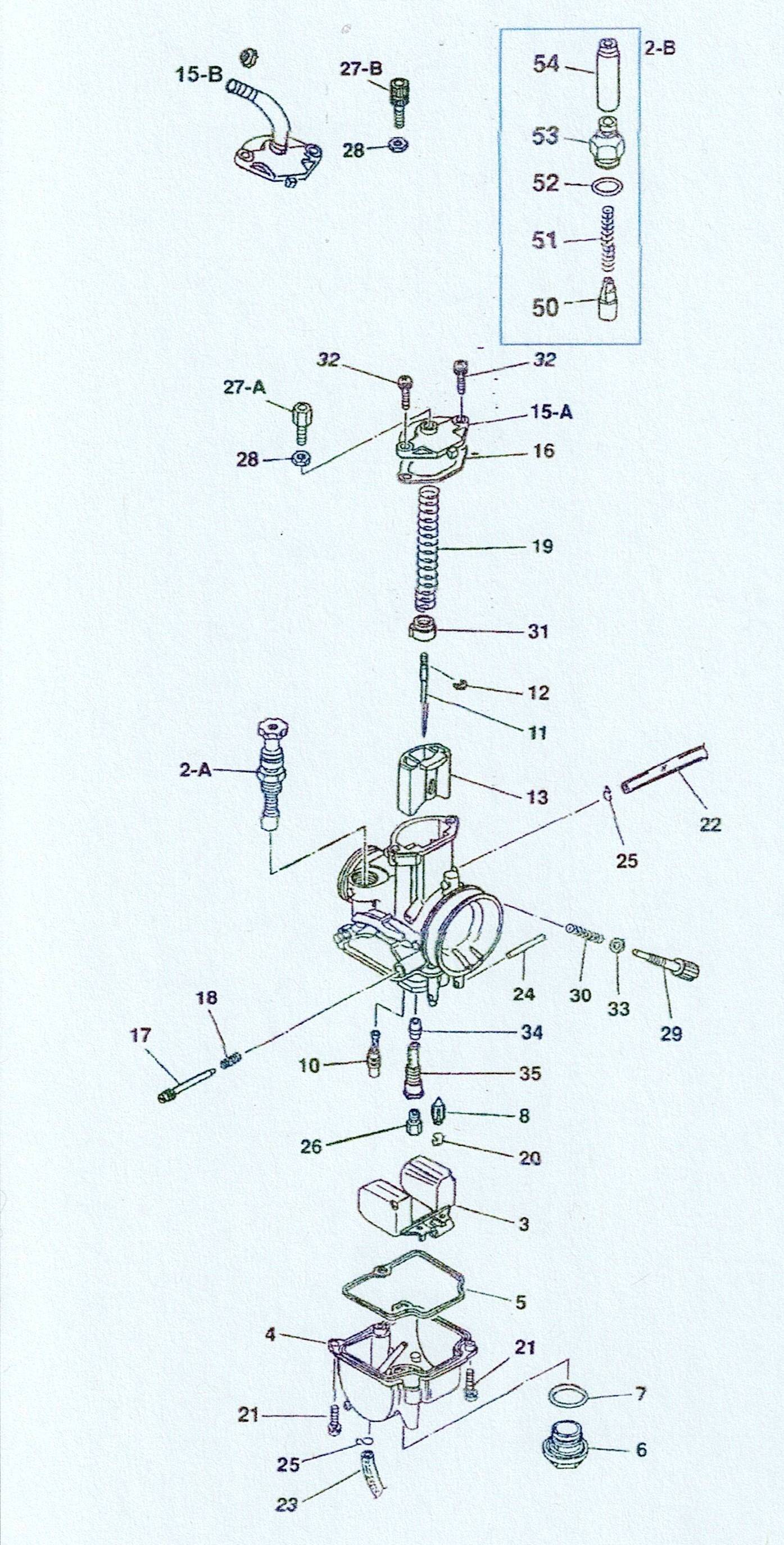

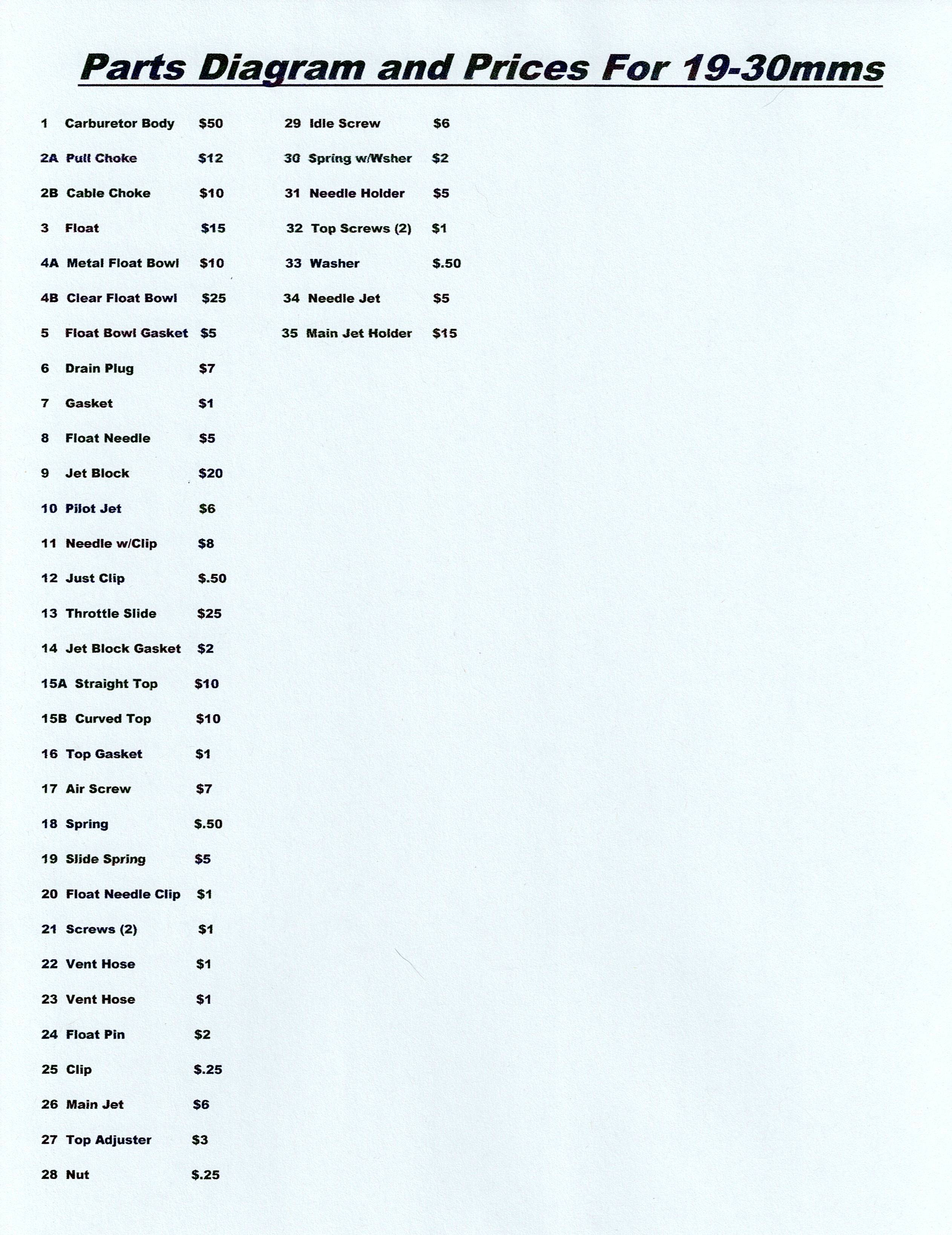

OKO K-101 19mm-30mm Parts Breakdown
1- Carburetor Body $40.00
2A Complete Choke $12.00
2B Cable Pull Choke $10.00
3- Float $15.00
4A- Float Bowl, Metal $10.00
4B- Float Bowl, Clear $20.00
5- Float Bowl Gasket $5.00
6/7 Drain Plug w/O Ring $7.00
8- Float Needle w/Clip $5.00
9- Jet Block w/Gasket $20.00
10- Pilot Jet $6.00
11- Needle w/Clip $8.00
12- Needle Clip $0.50
13- Throttle Valve/Slide $20.00
14- Jet Block Gasket $1.00
15A- Top (Straight )w/gasket $5.00
15B- Top (Curved)w/Gasket $10.00
16- Top Gasket $1.00
17- Air Screw w/Spring $4.00
18- Spring $1.00
19- Slide Spring $5.00
20- Float Needle Clip $1.00
21- Float Bowl Screws (2) $1.00
22- Vent Hose, Long $2.00
23- Vent Hose, Short $1.00
24- Float Pin $2.00
25- Vent Hose Clip $0.50
26- Main Jet $5.00
27- Cable Adjuster w/Nut $5.00
28- Nut $1.00
29- Idle Screw Complete $4.00
30- Spring w/Washer $2.00
31- Needle Holder $3.00
32- Top Screws (2) $1.00
33- Washer $0.50
34- Needle Jet $4.00
35- Main Jet Holder $15.00
In the text box below, list the numbers or names of the parts you want and the quantity.
In the text box below, choose the size carburetor parts are for.
Place your e-mail address and country parts are to be shipped to in the box below and I will send you a price quote.
Use the text box below for questions or details of your order.
OKO K-101 Clear or Metal Foat Bowl
OKO offers this clear float bowl for the K-101 series so you can easily check the float level, or see if any dirt or water has accumulated in the bowl. It attaches with four screws (incuded). It does not have the bottom nut for access to the main jet. This may be purchased by itself or with a K-101 Carburetor kit. Click on the "options" when ordering. Both clear and metal bowls come with the gasket
We have three kits for adapting flange mount manifolds for spigot mount carburetors and one sleeve for spigot to spigot mount. #1 has 2" or 51mm bolt center spacing and is for 34-35mm carburetor spigots. #2 has 60mm bolt center spacing and is also for 34-35mm carburetor spigots. #3 has 60mm bolt center spacing and is for 40-42mm spigots. #4 sleeve is for 33 to 35mm spigots and #5 sleeve is 39mm ID on one end and 33mm on the other. We also have a couple of larger sleeves. contact us for availability.
Manifold Adapter Kits
K-101 Gaskets and Sets
This universal throttle cable kit from Venhill comes with everything needed to create your own custom throttle cable. Outer housing and wire are over 4' long with an array of fittings. Slide end is already attached and a solderless throttle end is included
K-101 Needles
We carry several Needles for the K-101 series. The stock needles for the various sizes from 30mm to 21 are available. Note: To date, we have used the 28mm, JJH needle for all applications from 19 to 28mm. We suggest you try the JJH if you find the stock needle has too much taper, giving a rich mixture towards 3/4 throttle.
Main Jets
Select or tell us the size you need. You can adjust the quantity at Check out.
Slow Jets
Select or tell us the size you need. You can adjust the quantity at Check out.
Curved Top, Straight Top, or Gasket
This curved top for the K-101 is sometimes the answer to limited space above the carburetor. It uses slightly more free cable than the straight top.
Domino and AMAL Throttles
There are three replacable rubber gaskets in the K-101 Carburetors. One is for the float bowl, another is for the float bowl drain plug, and the third is for the jet block. These are a good set of spares to have on hand.
Note: OKO has thickened the jet block gasket, eliminating early leakage problems of air and/or fuel from the float bowl. A good seal here is imperative to get your OKO properly dialed in.
We offer the Domino "Slow" and "Fast" throttles, as well as the AMAL T80/200 Trials throttle. To the right you can select which you would like.
Parts and Accessories
Venhill Universal Throttle Cable

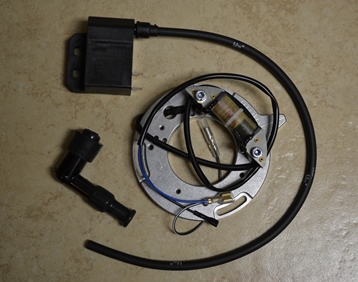

Electrex World Electronic Ignition Kits
We now offer Electrex World electronic ignition kits for several Trials motorcycles as well as other bikes. These are made in the UK and are of very good quality. We can supply them for BSA, Bultaco, Fantic, Triumph and Yamaha Trials bikes as well as others. Prices for Bultaco and Yamaha kits start at $275.00 without the lighting coil and $325 with the lighting coil. When a new flywheel is supplied, as with the Montesa cota 348 system, cost is typically about $50 more. Call for availability and prices of other kits.
Call Roger at 410-635-6722 or 443-821-6154.

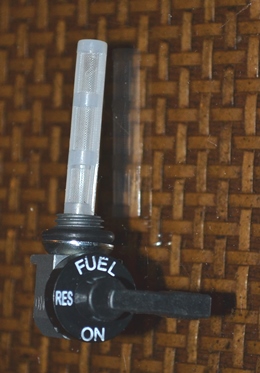

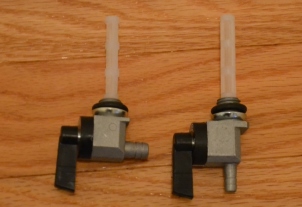

12mm Petcocks
These have 12mm by 1.5mm threads and are used on many Spanish bikes as well as other European bikes. We carry two versions, horizontal outlet and vertical outlet. choose which you would like from the drop-down box
Needle Shims
Often, the best needle clip position is between notches, so we offer this five pack of shims. One shim sets the needle height half way between notches
K-101 Slides/Throttle Valves
We carry replacement slides for the K-101 Series from 21mm to 30mm. Select the slide from the Drop-down list.
Note: OKO does not use different cutaways as others do. The bottom of the slide is made to match the profile of the jet block.
K-101 Jet Blocks

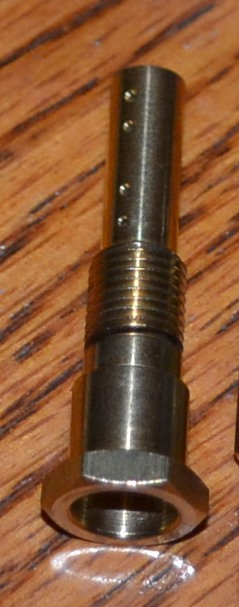

K-101 Main Jet Holders
Note: Parts not listed here can be found at the bottom of this page. We hope to add them here soon, but in the mean time you can order them using the text box in that area and we will send you a Paypal invoice which will include shipping. As noted above, shipping will be free if parts and/or accessories are ordered with a carburetor or if the order totals $20.00 or more. Orders under $20.00 will have a shipping fee of $5.00
We carry jet blocks for all sizes. Not normally a wear item but can get plugged or damaged. It comes with a jet block gasket as above on the right.
Main jet holders available in all sizes, from 19mm to 30mm
We have not had any issues with floats, but have had requests for these. They come with the float needle with the Viton tip. Float leakage problems are mostly caused by wear or damage to the float needle tip.
K-101 Float and/or Needle
OKO K-101 and K-104 Cable Operated Choke
For bikes that have poor access to the regular pull choke, OKO has this conversion kit to change over to a cable operated choke. Comes with a curved top, and we also can provide a straight top if desired. This choke kit can be used with either lever below, as well as our Venhill Universal throttle cable
K-101 Air Screw
K-101 Idle Adjustment Screw
Fits all K-101s from 19 to 30mm. Comes complete with spring.
Idle screws are different for different size carburetors. Let us know what size you need it for, Comes complete with spring.
We carry and sell virtually every part for the K100 series of OKO carburetors. Parts for the larger K-104 series are not yet listed, but all are available. K-104s do use the same air screw and pull choke. Also, Keihin's 28mm PWK can use most of OKO's parts, excluding the slide, the idle screw and the needle jet. Contact us using the form at the bottom of the page for prices and availability.

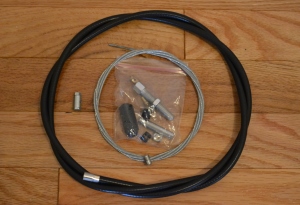

Venhill Universal Clutch/Brake Cable
This universal cable kit from Venhill comes with everything needed to create your own custom front brake or clutch cable. Outer housing and wire are over 4' long with an array of fittings. Lever end fits three hole sizes and comes with an eight mm set screw barrel for the other end.
Accessories
USA buyers: Select the shipping cost of your order below.
Heat Block
Used on Many Spanish and British bikes that had AMAL MKI Concentric carburetors. They are 10mm thick and the bolt holes are 2" on centers, made for 5/16" or 8mm bolts.
Shipping Costs For US Buyers
OKO K-101 and K-104 Pull Choke
This stock pull choke fits all K-101 and K-104 OKO carburetors, from 19mm to 40mm
Needle Jets
We have needle jets for all
K-101 carburetors, from 19mm to 30mm. Select the size from the drop-down box.
Your email address here, so we can reply.
Venhill Universal Long Throttle Cable
This universal throttle cable kit from Venhill is 92 inches long and comes with everything needed to create your own custom throttle cable. Slide end is already attached and a solderless throttle end is included. It is currently a special order item taking about five days for us to obtain.
We have slow or pilot jet sizes in stock from 30 to 70+. Examples of popular sizes are:
35,38,40,42,45,48,50,52,55,58,60,62,65,68,70...
We have main jets in stock from 90 to 180.
Examples of popular sizes are:
100,103,107,110,112,115,118,120,122,125,130,135,
138,140,142,145,148,150,152,155,158,160,162,165

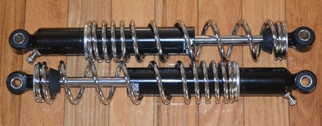

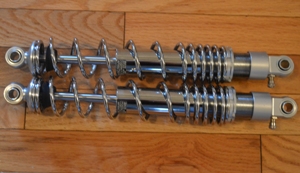

Trials Shocks
We carry two types of Betor Gas Trials shocks, Expert and Pro. Expert shown to the left, the Pro shocks are aluminum bodied with threaded spring adjustment, rather than circlips, as on the Expert shocks. These both come in lengths from 330mm to 400mm with spring rates of either 40 or 50 pounds. Cost of the Expert shocks is $200.00 including shipping and cost of the Pro shocks is $275 including shipping. These are special order due to the number of sizes. Shipment usually takes about a week.
Curved top with adjuster is no longer available.
It now comes without the adjuster.
Visu Filter and Kits
Select the Visu Filter and/or
1/4" Tygon Fuel Hose per foot

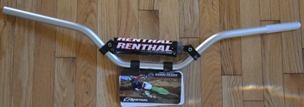

Renthal Trials Bars
We carry Renthal Trials Bars in various "rises" up to 6". We don't always have these in stock, but it just takes about a week to get here from the UK. These cost $20 to ship so we offer a shipped price and a picked up price. Currently we have a pair of 5.5" rise, black Renthals
Alloy Levers
We have Doherty Alloy Levers and Shorty Alloy Levers, both for 7/8th inch bars. The Doherty are full length with larger cable end holes typically found on Spanish and British Trials bikes. The Shorty Levers have a smaller cable end hole that is typical for Japanese bikes like Yamaha.

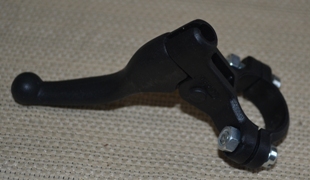

Choke or Decompressor Levers
We have a Domino lever and a Venhill, British style lever for use with our cable operated choke or to use as a decompression lever.
Air Filters
We are offering two different air filters for the K-101 series (19mm-30mm), and one for the K-104 series (32mm-40mm). We have the UNI 2-stage foam filter for the K-101s and K-104s and we have a K&N style filter for the K-101 series. Select the air filter you want from the drop-down list.
UNI Filters
K&N Style
Buyers in the US must add $5.00 for First Class Package shipping for all orders under $20.
Buyers in the US can add $10 for Expedited Priority shipping for orders under $20.
International buyers, email us at usaoko@comcast.net for shipping costs.
Stainless Steel Hose Clamps
We carry an assortment of stainless hose clamps from size #20 for up to 1 3/4" to size 48 for up to 3 1/2".
